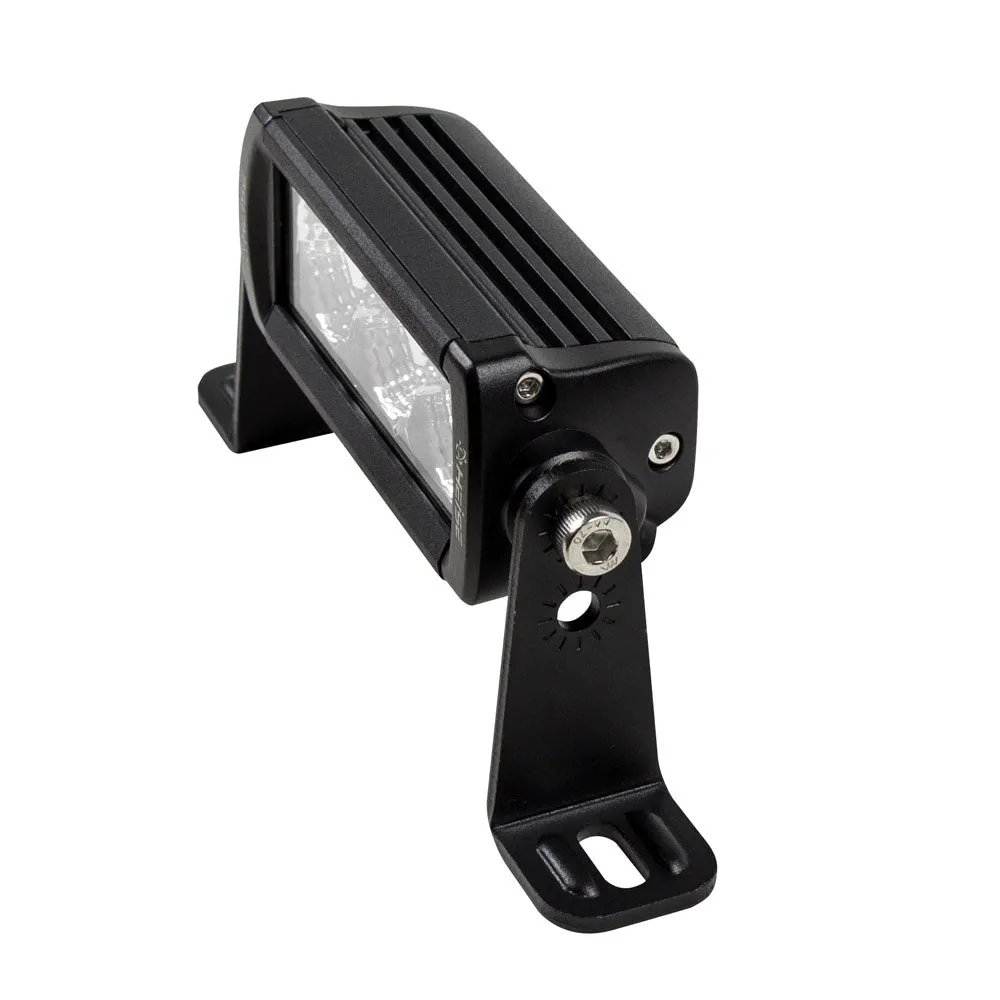

Single Row Slimline LED Light Bar - 5-1/2"

SPECS

• Input Voltage: 1030V DC
• Wattage: 9W (33W OSRAM LEDs)
• Raw Lumens: 720
• LUX @ 10M: 10
• Color Temperature: 6000K
• Beam Pattern: 90 Flood

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Diecast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward 5.25"
• Brackets turned outward 7.25"
• Mounting Bolt Drill .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: IntegratedEpoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: 40C to 60C
• Current Consumption: .4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Beam Pattern: Flood
• Length (Inches): 5.5"
• Housing: Black
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 5"H x 5"W x 16"L WT: 2.15 lbs
• UPC: 086429317400
